FEATURES

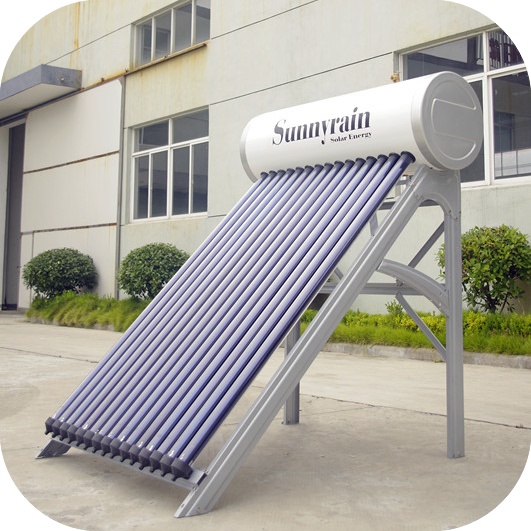

Pressurized Solar Water Heater (Galvanized)

1.Material of outlet tank: anti-corrosion 0.4mm thick galvanized steel, diameter-470mm

2.Material of inner tank: food grade 1.2/1.5/2.0mm thickness SUS304 stainless steel, diameter-360mm

3. Tank insulation layer 55mm 45kg/m³ high density polyurethane foam

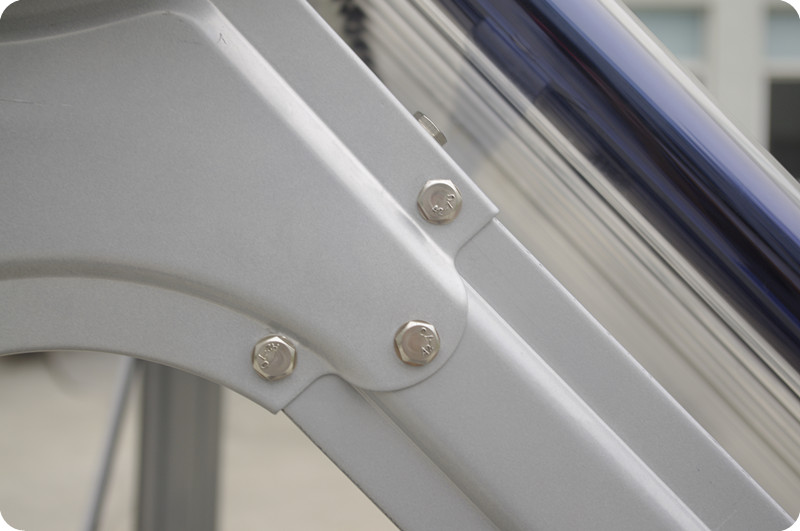

4.Support: 1.5mm thick galvanized steel

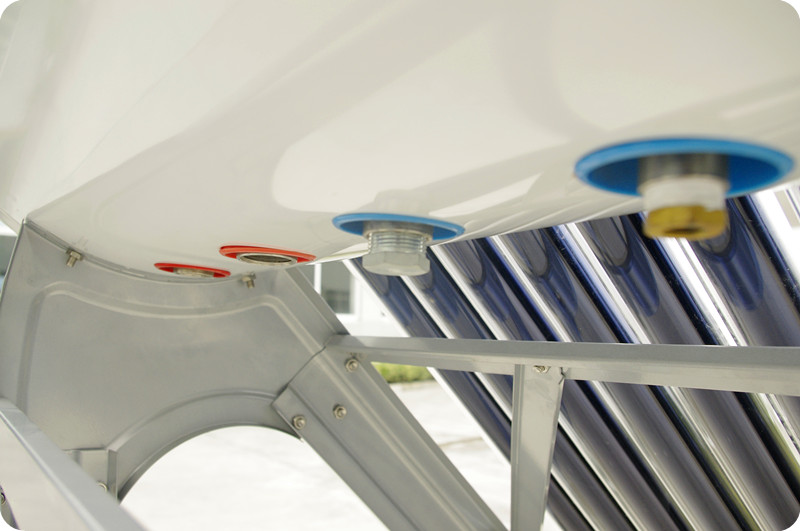

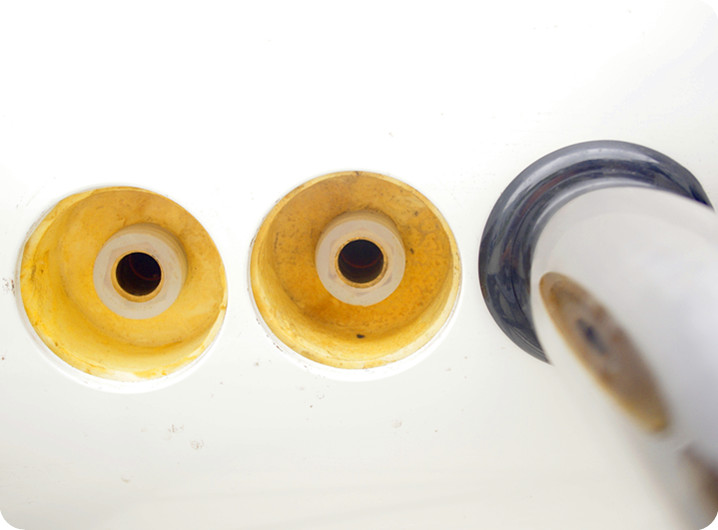

5. Tank structure: Totally 5 holes for air vent, water inlet and outlet,

electric heater, magnesium rod

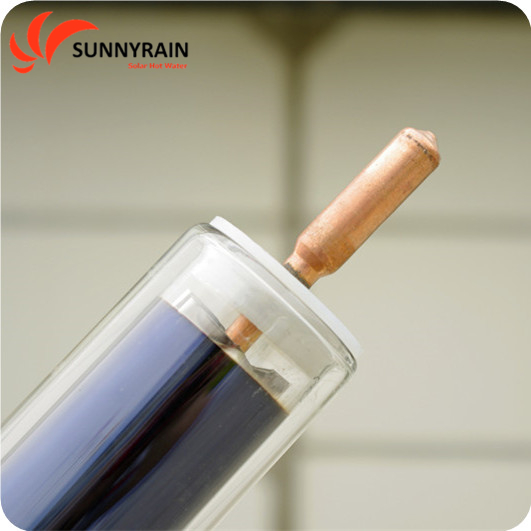

6.Solar collector tube: Borosilicate glass 3.3 Target 3.3 with N/Al coating, thickness 1.6mm

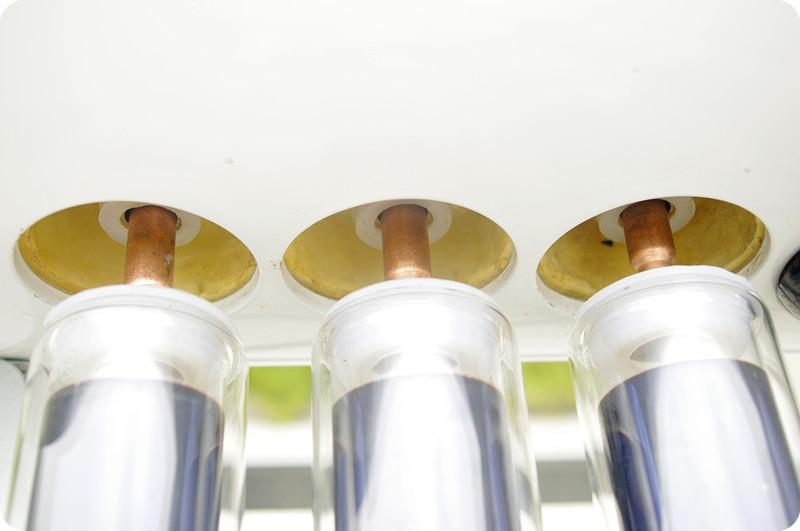

7. Heat pipe: red copper. Head: Ø24*1mm; Body: Ø8*0.6mm in thickness, 1700mm in length

8.Male inlet and outlet hole G 1/2, 3/4

9. Welding: argon arc welding

10. Clamping parts: made of stainless steel screw

11. Accessories: magnesium rod

* The inner tank can be upgraded to SUS 316 material according to customer's requirements and the thickness can also be adjusted to 2.0mm
